Hackers – How to Steer an Autonomous Wheeled Robot to Drive Towards a Detected Object

During the same session at which we figured out how to translate joystick movements into motor signals for a robot with two drive wheels (https://coderdojoathenry.org/2019/02/24/hackers-how-to-control-a-robots-wheel-motors-based-on-joystick-movements/), we moved on to figuring out how to control the motor so as to steer an autonomous robot towards an object of interest.

Again, we did a bunch of calculations on a whiteboard (see end of post), and I have re-drawn them for this post.

This builds on the previous work, led by Kevin, on object detection in Python: https://coderdojoathenry.org/2018/12/06/hackers-starting-with-object-recognition/

We assume the setup is as follows:

  • We have a robot with two wheels attached to motors, one on the left and one on the right
  • We have code to control the motors for the two wheels (which we call Motor M1 and Motor M2) with a value in the range -1 to 1, where 1 is full speed ahead, 0 is no movement, and -1 is full speed reverse
  • We have a camera mounted on the robot, facing directly ahead
  • We have code to get an image from the camera and can detect an object of interest, and find its centre (or centroid) within the image

The objective is:

  1. If the object is in the middle of the image, robot should go straight ahead (M1=1, M2=1)
  2. If the object is to the right, move forward-right (e.g. M1=1, M2=0.7)
  3. Likewise, if the object is to the left of centre, move forward-left (e.g. M1=0.7, M2=1)
  4. If the object is not found, we turn the robot around in a circle to search for it (M1=1, M2=-1)

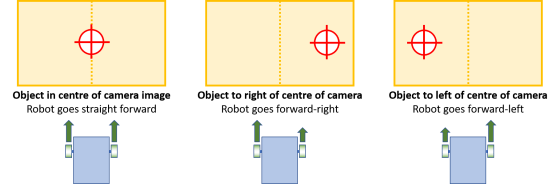

The first three of these are illustrated below:

steering

Our solution is to treat this as a variant of what we previously worked out before, where we had a joystick input, where the X direction of the joystick controls forward movement and its Y direction controls whether to move left or right. In this case, we are steering left/right while always moving forward. Therefore, X has a fixed value (X=1) and Y is a value that depends on the direction of the object of interest.

The equations we came up with are:

X = 1 (a fixed value)

Y = (W – HWid) * YMax / HWid

Then use X and Y to calculate the motor control values as before:

M1 = X + Y, constrained to being between -1 and +1

M2 = X – Y, constrained to being between -1 and +1

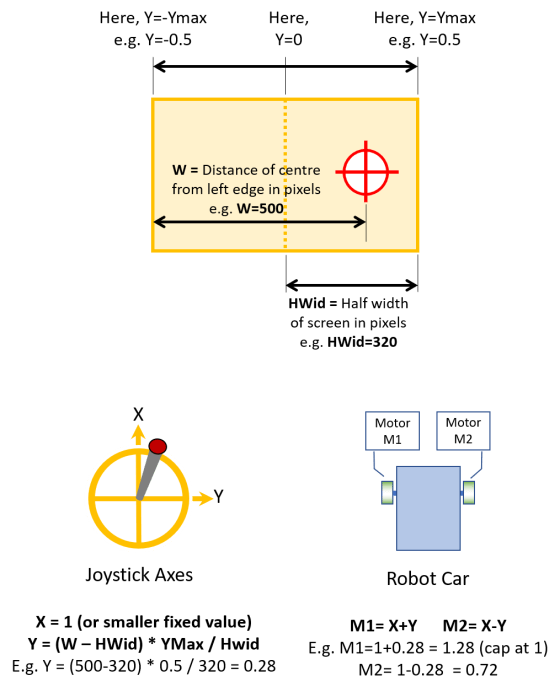

steering3

Here:

  • X is a fixed positive value: X=1 for full speed, or make it smaller to move forward more slowly
  • Y is calculated from the equation above
  • W is the distance of object’s centre from left edge of the image, in pixels
  • HWid is half the width of the image, in pixels (for example, for a basic VGA image, 640×480, HWid is 640/2 = 320)
  • YMax is a value approximately 0.5, but needs to be calibrated – it depends on how sharply you want your robot to steer towards the object
  • M1 is the control signal for Motor M1, in the range -1 (full reverse) to +1 (full forward)
  • M2 is the same for Motor M2
  • Constrained means: if the calculated value is less than -1, set it to -1; if it is greater than +1, set it to +1.

Here are our calculations on the whiteboard:

whiteboard-calcs2

Hackers – How to Control a Robot’s Wheel Motors Based on Joystick Movements

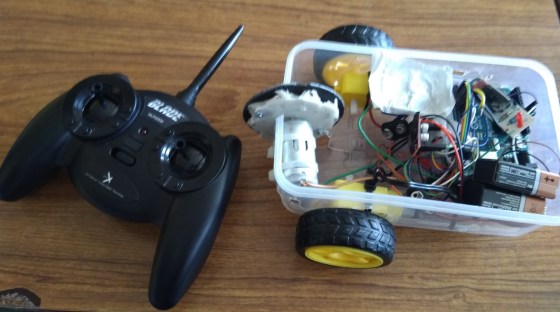

robot+controller

At our most recent session in the Hackers group in CoderDojo Athenry, we spent out time on practical mathematics, figuring out how, if we want to make a robot that is controlled by a person with a joystick, how exactly do we translate movements of the joystick to signals sent to the motors.

joystick-robot-assumptions

Our assumptions are:

  • We are controlling robot with 2 drive wheels, one on the left and one on the right, like the one shown in the photo above (which we made last year)
  • We assume that we have code to control the motors for the two wheels (which we call Motor M1 and Motor M2) with a value in the range -1 to 1, where 1 is full speed ahead, 0 is no movement, and -1 is full speed reverse
  • To make the robot turn, drive the motors M1 and M2 at different speeds
  • We assume that we have code to receive signals from the joystick, and get X and Y values in the range -1 to 1, as shown in the diagram below

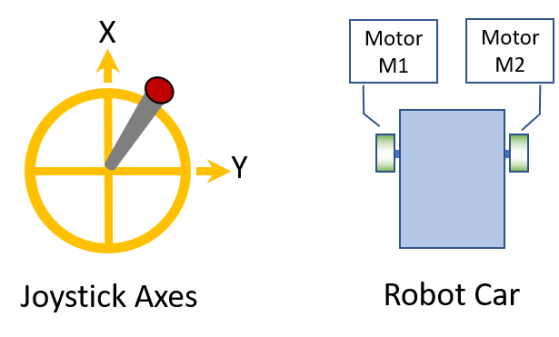

Our approach was to think about what joystick positions (X and Y) should result in what robot movements (M1 and M2), and then see if we could come up a way of expressing M1 and M2 in terms of X and Y. We filled a whiteboard with satisfying diagrams and calculations; see the bottom of this post. I have re-dawn them for clarity below.

The resulting equations are quite simple:

M1 = X + Y, constrained to being between -1 and +1

M2 = X – Y, constrained to being between -1 and +1

Here:

  • M1 is the control signal for Motor M1, in the range -1 (full reverse) to +1 (full forward)
  • M2 is the same for Motor M2
  • X is the forward position of the joystick from -1 (full back) to +1 (full forward)
  • Y is the left/right position of the joystick from -1 (full left) to +1 (full right)
  • Constrained means: if the calculated value is less than -1, set it to -1; if it is greater than +1, set it to +1.

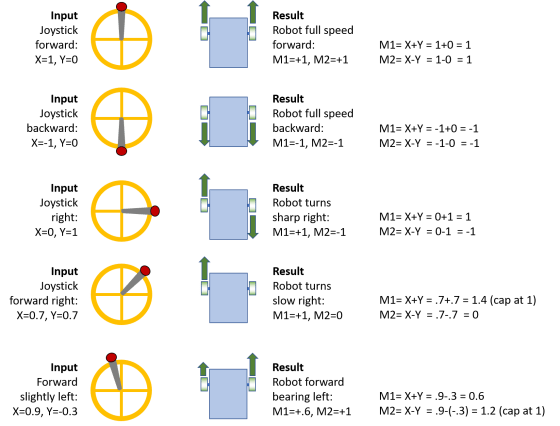

Here is the full set of joystick positions and motor movements that we considered, showing how the equations work:

joystick-all-calcs

We previously figured out how to control motors with a H-bridge controller from an Arduino: https://coderdojoathenry.org/2019/02/07/hackers-controlling-robot-wheels-and-handling-interrupts-in-arduino/

Each motor needs two control signals in the range 0-255, one for forward and one for reverse, so we will need more code to convert our M1 and M2 to what is needed for the H-bridge, but that is a fairly easy job for a different day.

whiteboard-calcs1

Week 4 – 2019 – Explorers

Hello everyone.

Good to see everyone there on Saturday. We finished our game from the previous week, similar to on old game called Breakout.

wipeout

We used a number of important coding concepts again this week, loops and decisions, Variables, broadcasting, etc.

concepts

Don’t forget we are off for the next two weeks. Enjoy the Break!

Here is a link to the notes: CDA-S8_Week 8-Wipeout.pdf



Martha

Creators: Shootah Part 4 – Colliders



This week we mainly dealt with building and using a box collider in our game. The box colliders are written in a way such that:

  • They are connected to something in the game and follow it around
    • What they are attached to must have the properties x and y for position
  • It is possible to test if they are touching each other
  • If two colliders are found to be touching, we tell the things that they’re attached to that they’ve been hit by something
    • What they are attached to must have a function hit() that we can call



Extents of the Collider

Our collider is a box, of a given width and height, centred on the x and y of the thing it’s connected to:

Untitled Diagram

For checking collisions, we need to know the values of the left and right side of the box and the y values of the top and the bottom of the box.

For convenience, we write a function which returns an object (using curly brackets) with the left, righttop, and bottom values (shortened lr, t and b respectively) as properties:

extents(){
  return {
    l: this.connected.x - this.width / 2,
    r: this.connected.x + this.width / 2,
    t: this.connected.y - this.height / 2,
    b: this.connected.y + this.height / 2
  };
}

When making an object like this, we set a property value by first writing the property name, followed by a  colon (:)  and then a space and the value we want it to have. Each property is separated with a comma. The don’t need to be on separate lines, but it makes it easier to read.



Touching Colliders

So how do we know that two colliders are touching? Actually there are four ways in which they definitely can’t be touching:

  • One is completely to the left of the other
  • One is completely to the right of the other
  • One is completely above the other
  • One is completely below the other

And if none of these are true, then it must be touching. So actually, we’re going to check that they’re not NOT touching (double negative, used correctly!).

How do we know if something is completely to the left of something else? Look at this diagram:



Untitled Diagram (1)

We know that box 2 (in blue) is totally to the left of box 1 (in orange) because we can see it is, but how could get the computer to check it? Remember, left and right are just x values on the screen. Box 2 is left of box 1 because both it’s left and right values are smaller than the left value of box 1.

The checks for the other directions are very similar:

  • The second box is right of the first box when both of it’s x values (left and right) are greater than the first’s right side.
  • The second box is above of the first box when both of it’s y values (top and bottom) are less than the first’s top side.
  • The second box is below of the first box when both of it’s y values (top and bottom) are greater than the first’s bottom side.



Sending Messages

Each collider has a property disc that describes the thing, or type of thing, that it’s connected to.

All colliders know what they’re connected to, so when we determine two have touched, we call a function called hit() on each of the connected objects, passing it the desc of the other collider. This means, in our game, when our enemy is hit, it can know that it’s been hit by a bullet – or maybe something else – and react appropriately.



Checking Every Collider Against Every Other

In our code, we gather all the active colliders at each frame. We then need to check each one against each every other one. How can we do that?

Consider a list of four items:

Untitled Diagram (2)

To check them all against each other we first need to check 0 against the other three. Simple enough.

We we need to check 1. But we don’t need to check 1 against 0, since we already did that. Nor do we need to check it against itself. We only need to check it against 2 and 3.

If we write out the full sequence, we see that for four items we need three passes to check all combinations:

  • First pass: Check 0-1, 0-2, 0-3
  • Second pass: Check 1-2, 1-3
  • Third pass: Check 2-3

We can write a pair of loops to do this:

for (let i = 0; i < c.length - 1; i++){
  for (let j = i + 1; j < c.length; j++){
    c[i].touching(c[j]);
  }
}

Note two things about these loops:

  • The first loop goes from zero, but stops one short of the last item in the list (i < c.length – 1). It picks the first item to be checked.
  • The second loop doesn’t start from zero. It starts from what ever i currently is, plus one. It picks the second item to be checked.



Other Stuff

We also did a few other things this week:

  1. We fixed a small bug that was keeping our spaceship moving when we didn’t want it.
  2. We added a little drag to slow the spaceship down to a stop when we lift our fingers off the keys
  3. We set bullets inactive when they hit something



Download

The files for this week can be found on our GitHub repository.

Bodgers – Introduction to Arduino

Hello again everyone.

I was away this week so Dave led the group, they did a couple of Arduino projects. They  revisited the traffic lights from December but this time used the Arduino to control them and then moved on to  a temperature and humidity sensor called the DHT11.



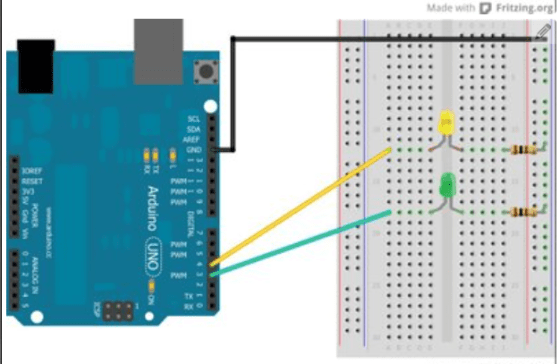

Here is the wiring diagram for  the traffic lights and you can find the code here.

arduino lights

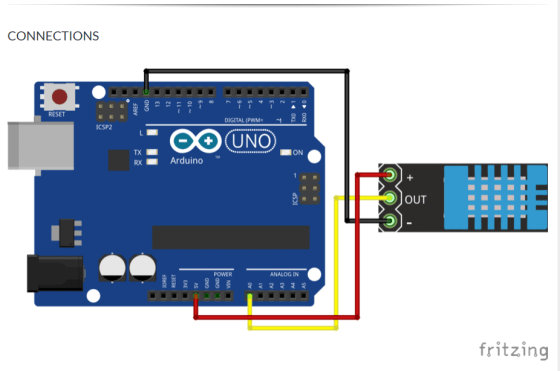

Here is the wiring diagram for the DHT11 and the code is also on Dropbox here.

dht

We will be doing more with the Arduino particularly for some of our projects.

See you All again on Saturday

Declan, Dave and Alaidh

Hackers – Controlling Robot Wheels and Handling Interrupts in Arduino

IMG_20190202_135834

Controlling Robot Wheels

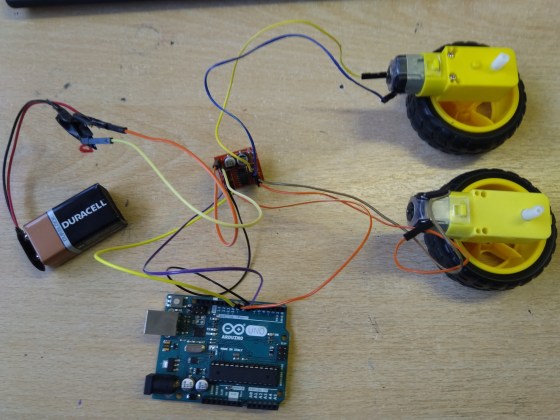

Last week, we figured out how to control a motor with a H-bridge. We expanded this to controlling a pair of wheels using the H-bridge. Above is a photo of the hardware. The wiring of the H-bridge is:

  • H-bridge [+] and [-] are connected to a 9V battery
  • H-bridge [IN1] to [IN4] is connected to Arduino Pins 6, 7, 8, 9
  • H-bridge [Motor A] and [Motor B] pins are connected directly to the two motors

Below is Arduino code by Hackers member Luke to control this.

// Luke Madden, CoderDojo Athenry
// Control motors using a H Bridge

// The H bridge has 4 input pins: in1-in4
#define in1 6
#define in2 7
#define in3 8
#define in4 9

int fast = 150;// range 1-255
int slow = 80;// slower speed
int hyperspeed = 255;// hits the hyperdrive

void setup() {
  pinMode(in1, OUTPUT);
  pinMode(in2, OUTPUT);
  pinMode(in3, OUTPUT);
  pinMode(in4, OUTPUT);
  Serial.begin(9600);
}

void loop() {
  drive();
}

 void drive() {
  // Test the functions
  Serial.println("move forward");
  forward();
  delay(2000);

  Serial.println("hit the hyperdrive");
  hyperdrive();
  delay(2000);

  Serial.println("go backwards");
  backwards();
  delay(2000);
}

void forward() {
  //makes motor go forwards
  analogWrite(in1, fast);
  analogWrite(in2, 0);
  analogWrite(in3, fast);
  analogWrite(in4, 0);
}

void hyperdrive() {
  //hits the hyperdrive
  analogWrite(in1, hyperspeed);
  analogWrite(in2, 0);
  analogWrite(in3, hyperspeed);
  analogWrite(in4, 0);
}

void backwards() {
  //makes motor go backwards
  analogWrite(in1, 0);
  analogWrite(in2, fast);
  analogWrite(in3, 0);
  analogWrite(in4, fast);
}

void stopping(){
  //makes it stop
  analogWrite(in1, 0);
  analogWrite(in2, 0);
  analogWrite(in3, 0);
  analogWrite(in4, 0);
}

Handling Interrupts in Arduino

In Arduino, you can set up special functions that are a called depending on the state of some digital pins – these are called Interrupt Service Routines (ISRs). These routines are called separately from the main loop() that is always running, even if the main loop() is in the middle of another operation.

For controlling our robots, our Arduino might receive a signal on a pin, and if we want the robot to react quickly, an ISR can handle it. The ISR can send a signal on a different pin or change the state of a variable.

This code is simple and correctly-working demonstration of how interrupts work. Note that you don’t need to build any circuitry to try this out. A built-in LED on the Arduino, at pin 13, turns on/off depending on whether Pin 2 is connected/disconnected from the the GROUND pin.

There are three main tasks:

  1. Define the ISR function: this is a function declared as void with no arguments: for example, our ISR is called changed and is defined as:
    void changed() { … }
    In our code, it sets the value of a variable called controlState and it turns the LED on/off. Note that the value of controlState is printed out repeatedly in the main program loop, showing how the ISR can change a variable that is used elsewhere.
  2. In the setup() function, set the pin mode of the control pin to INPUT or INPUT_PULLUP (see below for the difference). For example, we have defined the variable control to have value 2 and are setting its mode like this:
    pinMode(controlPin, INPUT_PULLUP);
  3. In setup(), attach the ISR to the pin:
    attachInterrupt(digitalPinToInterrupt(controlPin), changed, CHANGE);

One extra note about the above line of code: all pins have numbers and all interrupts have numbers, and these are not (necessarily) the same numbers. The function digitalPinToInterrupt() returns the interrupt number corresponding to a given digital pin.

Some other things to note:

  • The Interrupt Service Routine (ISR) should be short and run fast: delay() calls are ignored and print() can cause problems.
  • You can’t attach two interrupts to the one pin: use CHANGE and then test pin state
  • If you initiate the pin with INPUT_PULLUP, it is triggered by connecting it to GROUND; otherwise, if you initiate it with INPUT, you need a circuit with 10k resistor.
  • On an Uno, can only attach interrupts to pins 2 and 3.
  • If you are changing a variable in the ISR and need to use it elsewhere, declare it as volatile.

Here is the full Arduino code:

// Michael Madden, CoderDojo Athenry
//
// Test a pin interrupt to which an interrupt service routine (ISR) is attached.
// When the control pin is connected to GROUND, the LED on the board is turned on.

// Things we have figured out:
// * The interrupt service routine (ISR) is a function declared as void with no arguments.
// * It should be short and run fast: delay() calls are ignored and print() can cause problems.
// * You can't attach two interrupts to the one pin: use CHANGE and then test pin state
// * If you initiate the pin with INPUT_PULLUP, it is triggered by connecting it to GROUND;
// * otherwise, with INPUT, you need a circuit with 10k resistor.
// * On an Uno, can only attach interrupts to pins 2 and 3.
// * If you are changing a variable in the ISR and need to use it elsewhere, declare it as volitile.

const byte controlPin = 2; // Want to react when this pin is triggered
const byte ledPin = 13; // no circuit needed: there is a built in LED on 13
volatile int controlState = 0; // will change this value in ISR

void setup() {
  pinMode(ledPin, OUTPUT);
  pinMode(controlPin, INPUT_PULLUP);
  attachInterrupt(digitalPinToInterrupt(controlPin), changed, CHANGE);

  Serial.begin(9600);
}

void loop() {
  // The main loop does not do much, it just prints out the value of the
  // control pin's state every 2 seconds.
  Serial.print("Current value of control pin = ");
  Serial.println(controlState);
  delay(2000);
}

void changed()
{
  // This is our interrupt service routine.
  // It is triggered when the control pin changes,
  // so we check its state and turn on/off the LED.
  //
  controlState = digitalRead(controlPin);
  if(controlState > 0) {
    digitalWrite(ledPin, HIGH);
  }
  else {
    digitalWrite(ledPin, LOW);
  }
}

Creators – Shootah Part 3 – Enemies etc.

This week we continued our Shootah project. We did two main things;

  1. Changed the code to control the total number of bullets to those actually on screen
  2. Added an enemy that loops backwards and forwards across the screen

Controlling the Number of Bullets

In Part 2, we made a new bullet every time the user pressed the Up key and put it in the bullets list.

This meant that after a while we could have a lot of bullets, most off the top of the screen, which was even slowing some machines down.

To limit the number of bullets we did four things:

  1. Added a new property to the Bullet class called active and set it to be true
  2. In the move() function for the bullet class, we added a check for the bullet going off the top of the screen (this.y < 0) and, if true, set the active property to false
  3. In sketch.js, we moved the lines of code in the draw() function responsible for moving and drawing the bullets into a new function called manageBullets() and called it from draw().
  4. In manageBullets() we made a new list called active and put every bullet that was still active into it. We then made this the new bullets list.

We write a little code that printed out the total number of bullets to verify this was working.

Adding an Enemy

We added a new file called enemy.js and included it in the index.html file.

This file looked a lot like player.js. The main different was the move() function. Our enemy moves constantly left-to-right. When it gets too far off the right-hand side of the screen (checked in move()) we set its x position to be off the left-hand side of the screen instead. This makes it loop around.

TODO

We still have loads to do and we made a list on the day:

  • No more infinite bullets!
  • Check edges so spaceship doesn’t disappear
  • Enemies
  • Collision detection
  • Enemies shoot back (bombs)
  • Lives/score
  • Levels
  • Background music
  • Moving background
  • Story

We’ve done two and we’ll do some of the others for sure.

Download

The files for this week can be found on our GitHub repository.
