Hackers – code for our first prototype remote-controlled robot

Here is a video of the first tests of our remote-controlled robot with 2-wheel drive.

The control for this is based on the calculations we described in an earlier post: https://coderdojoathenry.org/2019/02/24/hackers-how-to-control-a-robots-wheel-motors-based-on-joystick-movements/

Here is the code:

// Code by Luke Madden, CoderDojo Athenry, with some comments added by Michael.
// This code controls a robot with 2-wheel drive, based on movements of a joystick.

// These are the motor H bridge control pins
#define in1 8
#define in2 9
#define in3 10
#define in4 11

// These hold values read from channels of the LemonRX receiver
int ch1;
int ch2; // not currently used
int ch3;

// These are the min and max values we read on each channel when we move the joystick
int joymin = 950;
int joymax = 1950;

// X and Y are joystick values in range -1 to +1
float X;
float Y;

// M1 and M2 are values for Motors 1 and 2, in range -1 to +1
int M1;
int M2;

void setup() {
  pinMode(5, INPUT);
  pinMode(6, INPUT);
  pinMode(7, INPUT);

  Serial.begin(9600);
}

void loop() {

  // read pulse width values from each channel of lemonRX
  ch1 = pulseIn(5, HIGH, 25000);
  ch2 = pulseIn(6, HIGH, 25000);
  ch3 = pulseIn(7, HIGH, 25000);

  // Convert them to floats in range -1 to 1: map uses int, so set it to int in range -1000 to 1000 and then divide by 1000.0
  X = map(ch1, joymin, joymax, -1000, 1000)/1000.0;
  Y = map(ch3, joymin, joymax, -1000, 1000)/-1000.0;

  // This is the fomula for how much power to send to each motor
  // Motor values should be in range -255 to 255, not -1 to 1, so multiply by 255
  M1 = (X + Y) * 255;
  M2 = (X - Y) * 255;

  // Our fomula can end up with values greater than 255, so constrain them to this range
  M1 = constrain(M1, -255, 255);
  M2 = constrain(M2, -255, 255);

  // Call our function to actually drive the motors
  drive(M1,M2);

  // print out for debugging
  Serial.print("Channels: C1=\t"); // Print the value of
  Serial.print(ch1);        // each channel
  Serial.print("\t M1=\t");
  Serial.print(M1);
  Serial.print("\t M2=\t");
  Serial.print(M2);
  Serial.print("\t C3:\t");
  Serial.println(ch3);

  // this delay seems to help reading joystick
  delay(300);
}

void drive(int M1, int M2) {
  // drive both motors at speeds M1, M2 in range -255, 255
  if (M1 > 0) {
    analogWrite(in1, M1);
    analogWrite(in2, 0);
  }
  else {
    analogWrite(in1, 0);
    analogWrite(in2, -M1);
  }

  if (M2 > 0) {
    analogWrite(in3, M2);
    analogWrite(in4, 0);
  }
  else {
    analogWrite(in3, 0);
    analogWrite(in4, -M2);
  }
}

Creators: Shootah Part 6 – Enemy Shooting Back

alien

This week we did our last iteration on Shootah and added a Bomb to be dropped by the enemy to try to hit the player.

Bomb Class

We copied the existing Bullet class and called it Bomb instead. The main changes we had to make were:

  1. Changing the speed to a negative number so that it moved down instead of moving up (as the Bullet does)
  2. Changed the check for the top of the screen to one for the bottom of the screen instead (to account for the fact it moves down)
  3. Changed the check in its hit() function so that the Bomb doesn’t interact with the Enemy when it’s dropped, but will be marked as inactive it if hits anything else.
  4. Changed the colour of the bomb to red

Manages Bombs

It happened that the code we had already written to manage bullets was already perfect for managing bombs as well.

We used Visual Studio Code’s built-in capability to automatically rename symbols to:

  1. Rename the bullets array to projectiles
  2. Rename the manageBullets() function to manageProjectiles()

This was enough to have bombs move, draw and be removed when it becomes inactive.

Dropping Bombs

We added a new function to Ememy called shoot(). In that function we generated a random number from one to two hundred. We then dropped a bomb every time that number was less than five (we tuned this small number to get a good rate of bomb drops). This meant that the enemy dropped a bomb at random intervals, to make it impossible for the player to anticipate.

Download

The files for this week can be found on our GitHub repository.

Bodgers – GPS



This week we looked at GPS which stands for Global Positioning System. The idea behind GPS is based on time and the position of  a network of  satellites. The satellites have very accurate clocks and the satellite locations are known with great precision.

Each GPS satellite continuously transmits a radio signal containing the current time and data about its position. The time delay between when the satellite transmits a signal and the receiver receives it is proportional to the distance from the satellite to the receiver. A GPS receiver monitors multiple satellites and uses their locations and the time it takes for the signals to reach it to determine its location . At a minimum, four satellites must be in view of the receiver for it to get a location fix.

We used the Adafruit Ultimate GPS Breakout connected to an Arduino as our GPS receiver. It’s very easy to set up, all we did was install the Adafruit GPS library on our Arduino and this gave us a load of programmes to chose from. We used the parsing sketch which gave us Longitude, Latitude and our location in degrees which we used with google maps to show our location.

See you all again on the 23/Mar/19

Declan, Dave and Alaidh



Bodgers – Pi Camera & OpenCV

This week in the Bodgers group we looked at the Pi Camera Module which is a high quality image sensor add-on board for the Raspberry Pi. You can capture images  from the command line with:

 raspistill -o cam.jpg

This will take a jpeg picture called cam which will be saved in your home folder.

You can take a picture from your Python script with:


from time import sleep
from picamera import PiCamera

camera = PiCamera()
camera.resolution = (1024, 768)
camera.start_preview()
# Camera warm-up time
sleep(2)
camera.capture('foo.jpg')

This will save a picture called foo in the folder you ran your script from.

OpenCV (Open source computer vision) is a library of programming functions mainly aimed at real-time computer vision. We tried a couple of scripts out, one from the Hackers group, thanks Kevin, that detects colours and another one that detects shapes, we will be looking at this much more in the next few sessions but next Saturday we will look at using an Arduino and a Raspberry Pi together.

See you all then.

Declan, Dave and Alaidh

Week 5, Explorers – Pen Commands

Hello Everyone,

A special welcome to all our new members that came to us this week, I hope you enjoyed yourself and hope to see you back again soon.

Thank you all for coming again this week. This week we looked at pen commands, we have not done this before in the Explorers group so it was new for everyone.

pencommand

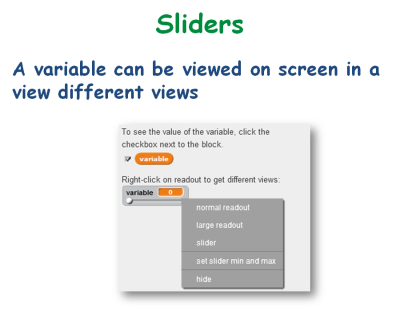

We also created some variables which we set as sliders which again is something we had not done before with this group.



sliders



















Here are the full Pdf version of my notes from this weeks session. CDA-S8 Week 5-Pen Command.pdf

Martha

Creators: Shootah Part 5 – Edges


This week we extended our colliders so that we could used them to prevent the player going off the edges of the screen. We used it to show how software design needs to evolve.

Colliders

Our colliders were designed to be connected to an object with three things:

  1. A property  containing the x-coordinate of its location
  2. A property y containing the y-coordinate of its location
  3. A function hit() which was called if the attached collider touched another collider

Something to Connect To

We had colliders already attached to our:

  1. Enemy
  2. Bullets

but we didn’t have anything to attach to that could represent the side of the screen.

We created a new class called Static() with nothing more than the x, y  and hit() that we needed so that we could connect a collider to it (stored in one more property – collider).

Screen Edges

We created a pair of these colliders positioned at the right and left-hand side of the screen. We made sure to add them to our list in check_colliders(). Nothing much happened. Why? Well, first, the Player didn’t have a collider, so we added one, liberally copying code from Enemy, which a minor change to the description argument.

Now we could see the contact occurring between the edge and the player, though nothing was stopping it moving yet.

Unintended Consequences

As  often happens with code, this change had unexpected consequences; bullets were not firing properly any more. Why? Because the player now had a collider and the bullets were becoming inactive immediately because they were hitting that. The fix was to modify the Bullet’s hit() function to ignore hitting a collider with the description “player”.

Stopping the Player Moving

We now knew our player was hitting an edge, but another problem became apparent: we didn’t know which edge!

To properly stop the player and stop it moving too far, we really needed to know which side of the player the collider we’d hit was, but that information wasn’t available to us with the current design.

A couple of quick changes were necessary:

  1. In Collider.touching(), instead of just passing the descriptors to the objects hit() functions, we changed it to pass the Collider itself.
  2. In all the hit() functions, we had to made a small adjustment to account for the fact that we were now getting a Collider and not just a string.

With the extra information from the collider, were were able to determine how far the player should be allowed to move to and prevent it going further by setting the x value appropriately.

Download

The files for this week can be found on our GitHub repository.
